GFEVT500-10R high-speed fuse 10A - 60A (450V 500V)

[附件: Download]

This series of DC fuses is suitable for rated DC voltage500V（450V)，rated breaking：20KA，asVehicle line system Electric compressor，DCConverters and auxiliary circuits，Inverter，DC power supply, instrumentation, base stationComprehensive protection，At the same time, it has the characteristics of strong limiting viewership, high breaking capacity, short circuit breaking speed, etc., and can withstand temperature shock, mechanical vibration shock, current shock, chemical load, etcProvisions in ISO 8820 and JASO D622 and GB/T31465。

Dimensions (mm)

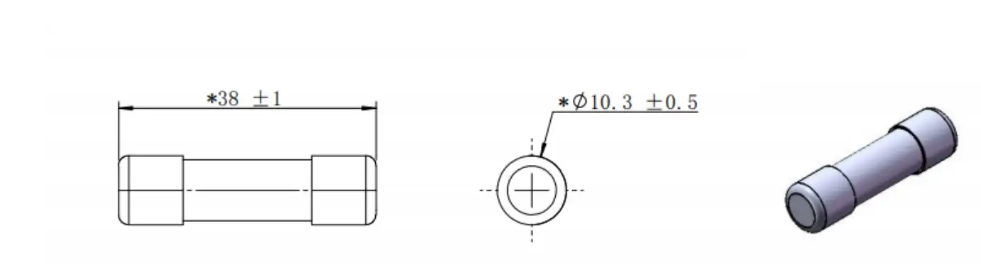

FerrulexxA-10R

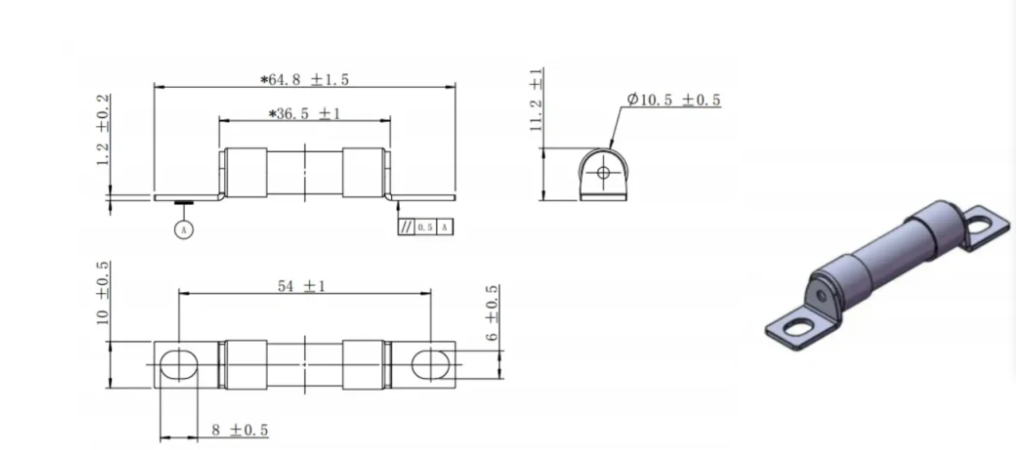

Axial bolt-on 1xxAP-10R

Surface MountxxH-10R

Flush bolt-onxxC-10R

Description

Low watt losses
Designed for DC applications
Excellent DC performance

Standards & Approvals

Refer to JASO-D622 / ISO8820.8 / GB31465.6
Manufactured under an IATF16949 quality system for compliance with automotive requirements
Reach declaration available upon request
RoHS compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
Can be applied in parallel to realize greater ampacity within sizing guidelines
Excellent resistance to voltaic impingement and environmental temperature variations
Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Fuse Amps	Average @ 20 kA/500 Vdc		Power Loss（w）
Fuse Amps	I²t Melting	I²t Clearing	100%
10	33.3	174.6	2.0
15	81.6	431.1	2.3
20	172.5	912.6	3.0
25	278.9	1504.0	3.8
30	401.2	2166.9	4.5
32	425.6	2351.5	4.8
40	721.6	4311.5	6.0
50	1036.0	5184.0	8.0
60	2098.0	6480.0	10.0

Applications

Battery pack protection
EV/HEV applications (pure electric and hybrid vehicles)
Superior cycling capability

Available Fuse Catalog No.

Catalog no./terminals
Ferrule	Axial bolt-on *1	Flush bolt-on	Surface Mount	Amps
10A-10R	10AP-10R	10C-10R	10H-10R	10
15A-10R	15AP-10R	15C-10R	15H-10R	15
20A-10R	20AP-10R	20C-10R	20H-10R	20
25A-10R	25AP-10R	25C-10R	25H-10R	25
30A-10R	30AP-10R	30C-10R	30H-10R	30
32A-10R	32AP-10R	32C-10R	32H-10R	32
40A-10R	40AP-10R	40C-10R	40H-10R	40
50A-10R	50AP-10R	50C-10R	50H-10R	50
60A-10R	60AP-10R	60C-10R	60H-10R	60
